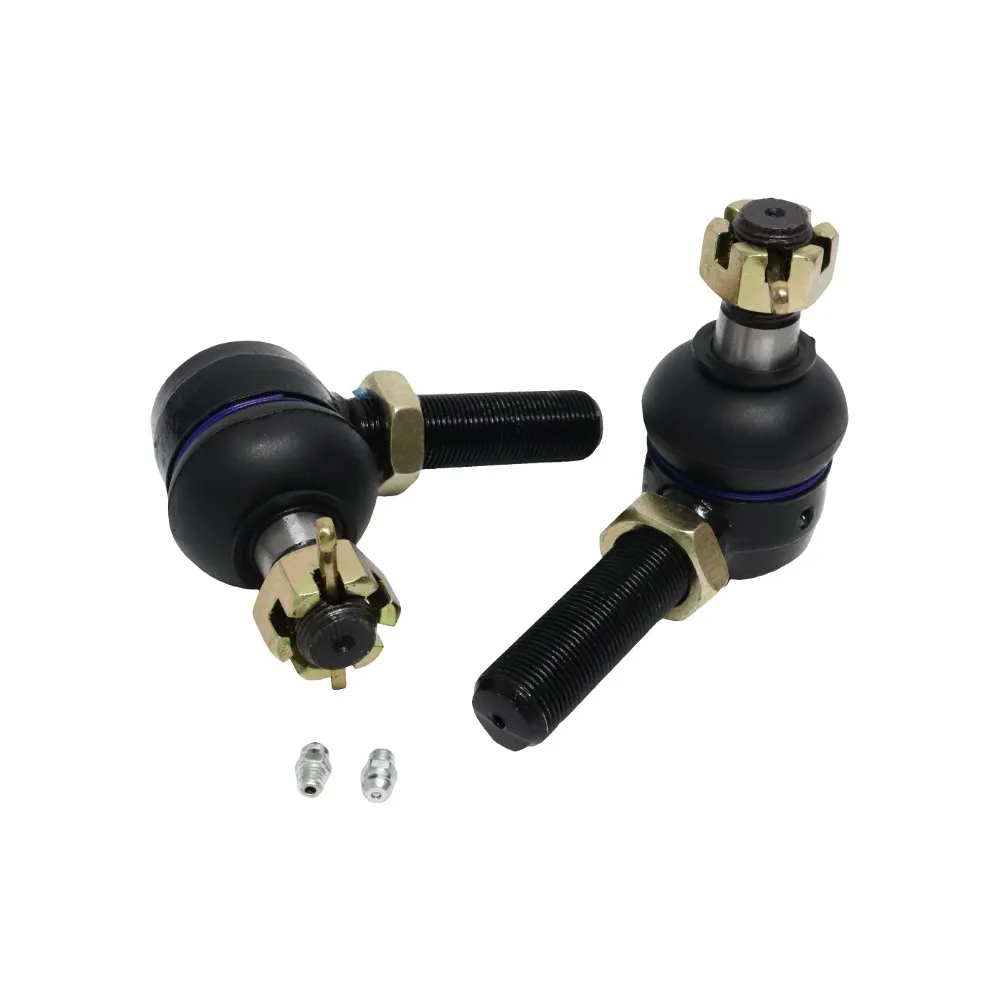

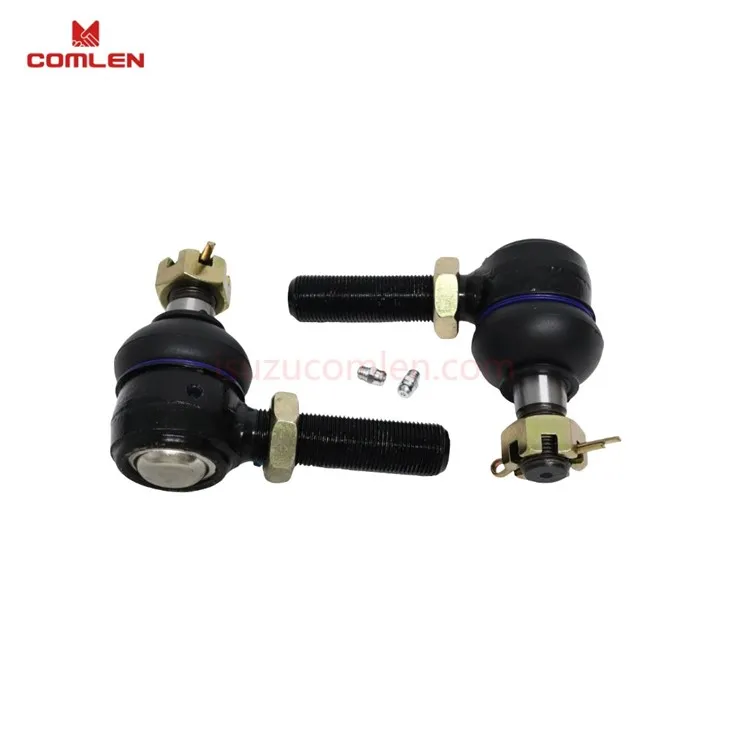

8972225100 8972225090 Tie Rod End LH / RH For Isuzu NKR / NPR / NQR Repair

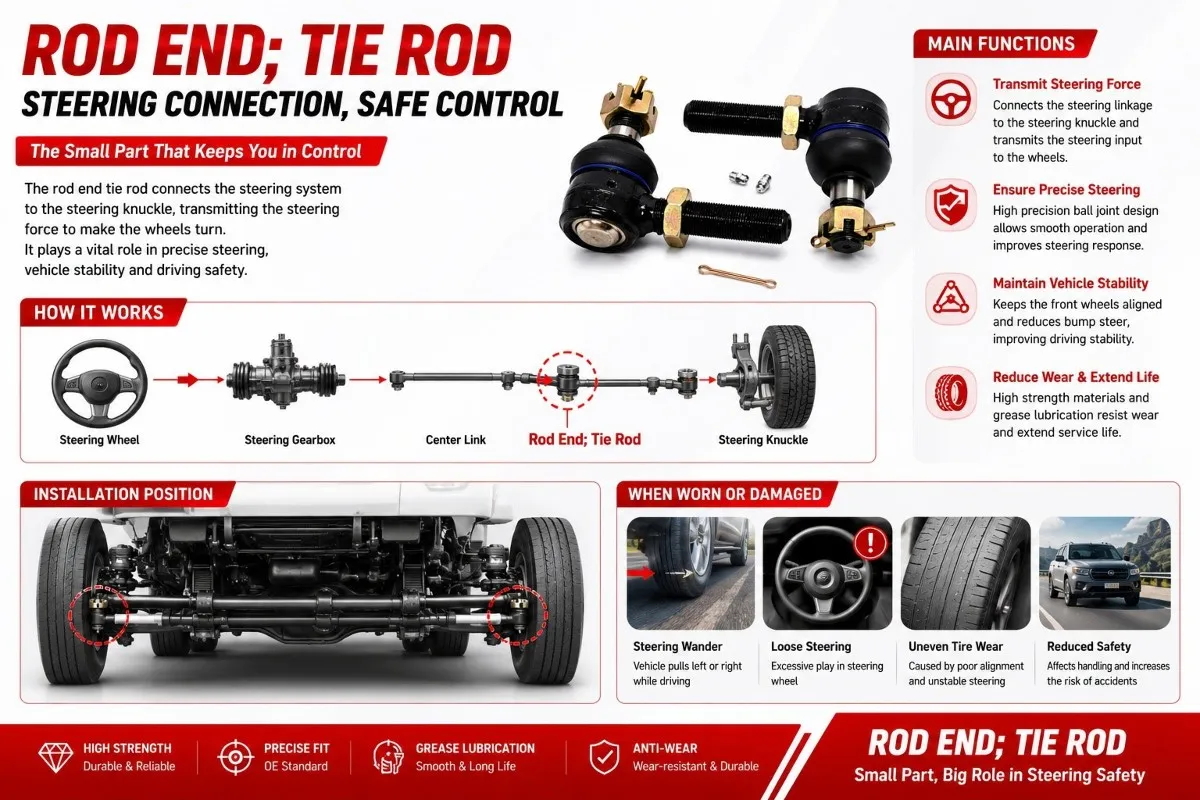

The Tie Rod End (also known as steering tie rod end, steering ball joint, or outer tie rod end) is a critical steering component that connects the tie rod (drag link or center link) to the steering knuckle on Isuzu NKR, NPR, and NQR trucks. This ball joint allows for angular movement while transmitting steering force from the steering gear to the front wheels

This tie rod end is specifically designed for Isuzu NKR (light-duty), NPR (medium-duty), and NQR (heavy-duty N-series) trucks – widely used for cargo transport, delivery services, commercial fleets, and municipal applications worldwide .

Parameter	Specification
Product Name	Tie Rod End / Steering Tie Rod End / Steering Ball Joint / Outer Tie Rod End
LH OEM Numbers	8971421010, 8971421011, 8972225100,8-97142101-0, 8-97142101-1, 8-97222510-0
RH OEM Numbers	8971421000, 8971421001, 8972225090,8-97142100-0, 8-97142100-1, 8-97222509-0
Quality Options	China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Aftermarket Quality
Material	Precision-forged high-strength steel (housing) – Heat-treated alloy steel (ball stud)
Ball Stud Finish	Induction-hardened and polished
Dust Boot Material	High-quality rubber or polyurethane (OEM specification)
Grease Fitting	Included on serviceable units (greaseable design)
Thread Type	LH (Left-hand thread) / RH (Right-hand thread) – Side specific
Mounting Type	Tapered stud with castellated nut and cotter pin
Function	Connects tie rod to steering knuckle – Transmits steering input
Fitting Position	Front axle – Steering linkage outer ends
Compatible Models	Isuzu NKR, NPR, NQR (see fitment table)
H/S Code	8708940000
Place of Origin	China
MOQ	1 piece per side
Warranty	1 Year

1. 29 Years of One-Stop Supply for Full Isuzu Models
With nearly three decades of experience, we are a dedicated one-stop supplier for all Isuzu truck models – including NKR, NPR, and NQR. We have the steering parts you need, when you need them.

2. Three Quality Levels – One Simple Choice
We offer Aftermarket Quality, Famous Brand Aftermarket Quality, and China ISUZU (Qingling) Quality on one page. Compare and choose the option that best fits your budget and reliability requirements without searching multiple suppliers.

3. LH and RH Available – Complete Axle Service
We stock both Left Hand and Right Hand tie rod ends. Order both sides for complete front axle steering service.

4. China ISUZU (Qingling) Quality – OEM-Level at Competitive Price
Factory-grade components manufactured to meet ISUZU's original equipment specifications. Precision-forged steel, heat-treated ball stud, and OEM-grade dust boot – the best value for fleets and repair shops.

5. Critical Safety Component
Tie rod ends are direct links between your steering system and your front wheels. A failure at highway speed could be catastrophic. Never compromise on steering component quality.

6. Restores Proper Steering Feel

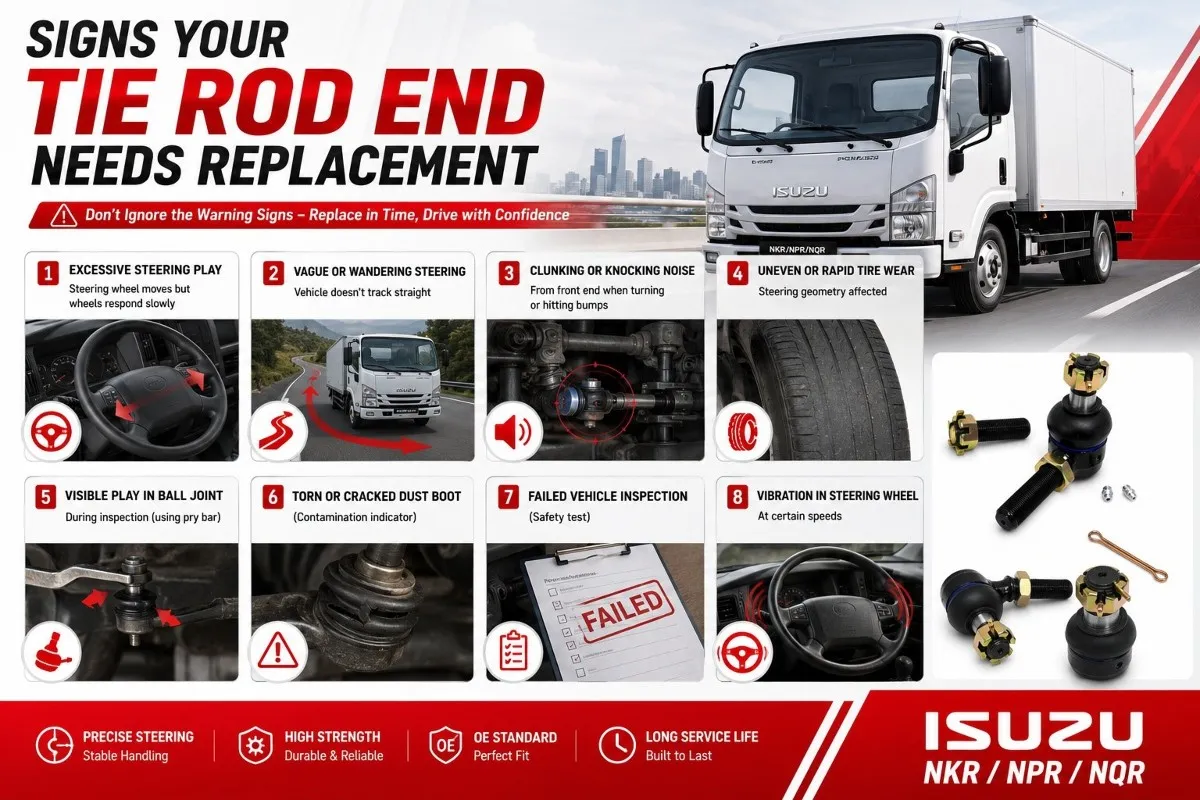

Worn tie rod ends cause loose, vague steering and uneven tire wear. Our replacement tie rod ends restore precise steering response and proper tire life.

7. Low MOQ & Fast Global Delivery
Order just one piece or multiple units – we accommodate all needs. Fast shipping options deliver within 1 to 8 working days worldwide, backed by a full one-year warranty.

8. Bulk Discounts for Fleets, Shops & Distributors
We offer attractive wholesale pricing for larger quantities. Our dedicated support team is always available to assist with fitment, installation, or any other questions.
