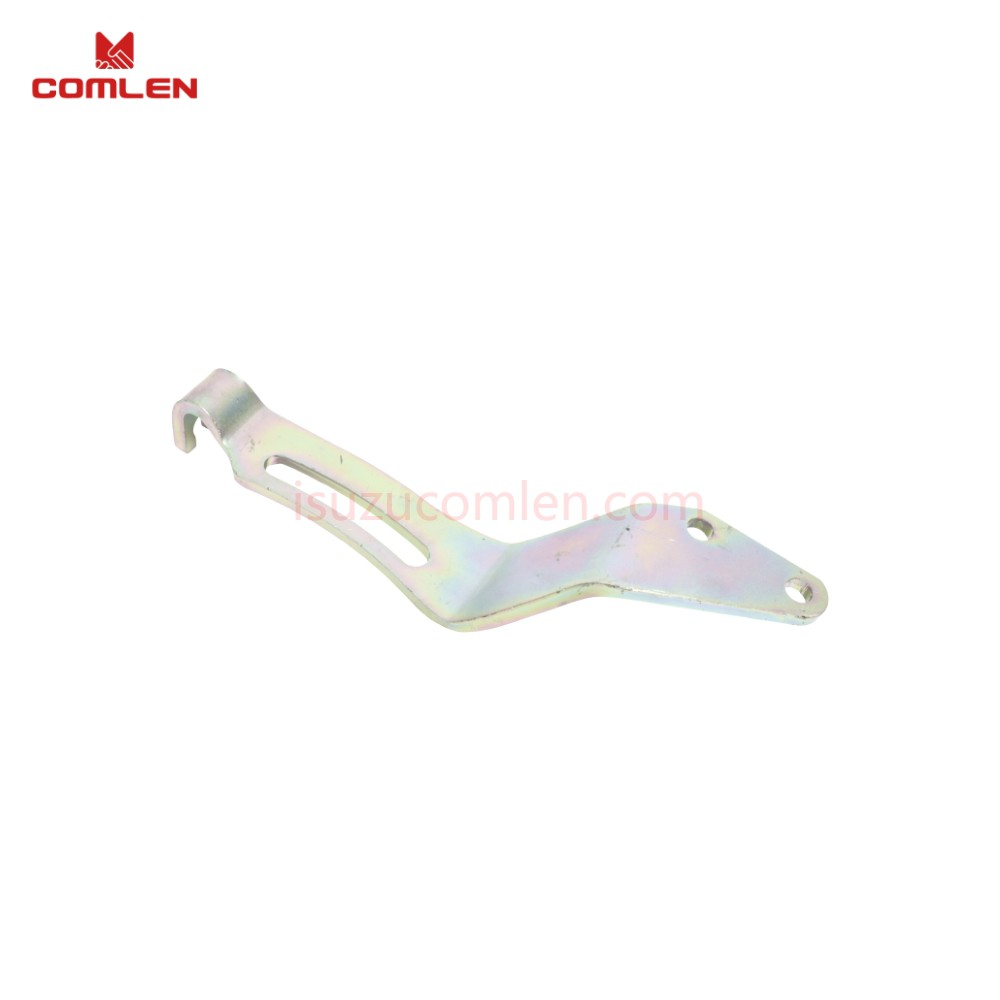

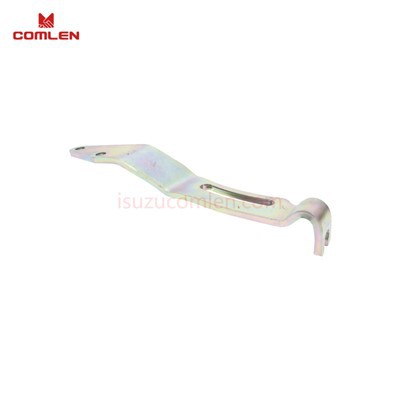

OEM Parts Belt Tensioner Bracket/ Alternator Bracket (Adjusting) For ISUZU 700P NPR 8980350850 8980350851 8-98035085-0 8-98035085-1
China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality for Choose we can offer for this Alternator Bracket (Adjusting).We are a One-stop ISUZU ,Hino ,Mitsubishi and Jiangling ,JMC truck parts supplier from China ,focus on all Isuzu trucks spare parts sales for 29 years . Worldwide shipping is supported .DM us for more ,WhatsApp +86 17383152089 .
Description
Products Description
Product Name: Alternator Bracket (Adjusting)
Truck Model Fit for: 700P NPR
OE NO.: 8980350850 8980350851 8-98035085-0 8-98035085-1
MOQ: 1 Pieces
Place of Original: China
Quality: China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality for Choose
Color: As picture shown
Engine Type Fits: 4HK1-TCS
Packing: neutral box/color box/customer brand package
Shipping: By Express, By Sea ,By Air, By Railway
Delivery Time: 1-8 Working days
Shipping: Worldwide shipping
Payment: TT.paypal.Western Union.Trade Assurance
Warranty: 1 Year
Alternator Adjusting Bracket are available in three quality grades,China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality for Choose. Allowing you to choose the option that best fits your vehicle requirements and budget:
| Quality Grade | Description |
|---|---|
| China ISUZU (Qingling) Quality | Original equipment manufacturer (OEM) standard for Qingling vehicles – reliable and cost-effective |
| Famous Brand Aftermarket Quality | Premium aftermarket brands with excellent durability and performance – ideal for standard replacements |
| Japanese ISUZU Quality | Highest grade, meeting Japanese original equipment specifications – recommended for heavy-duty applications and long-term reliability |

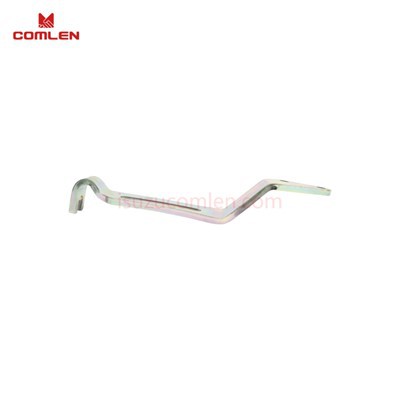

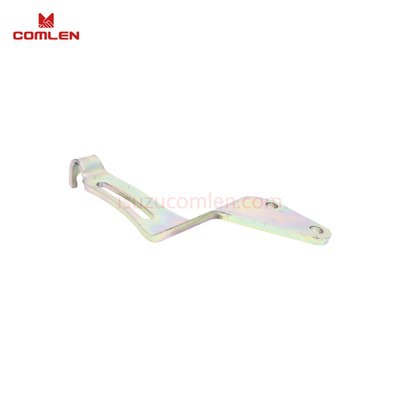

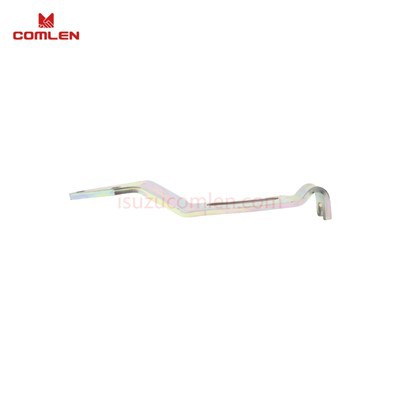

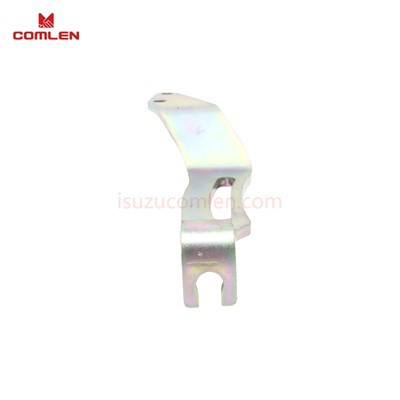

Products Image

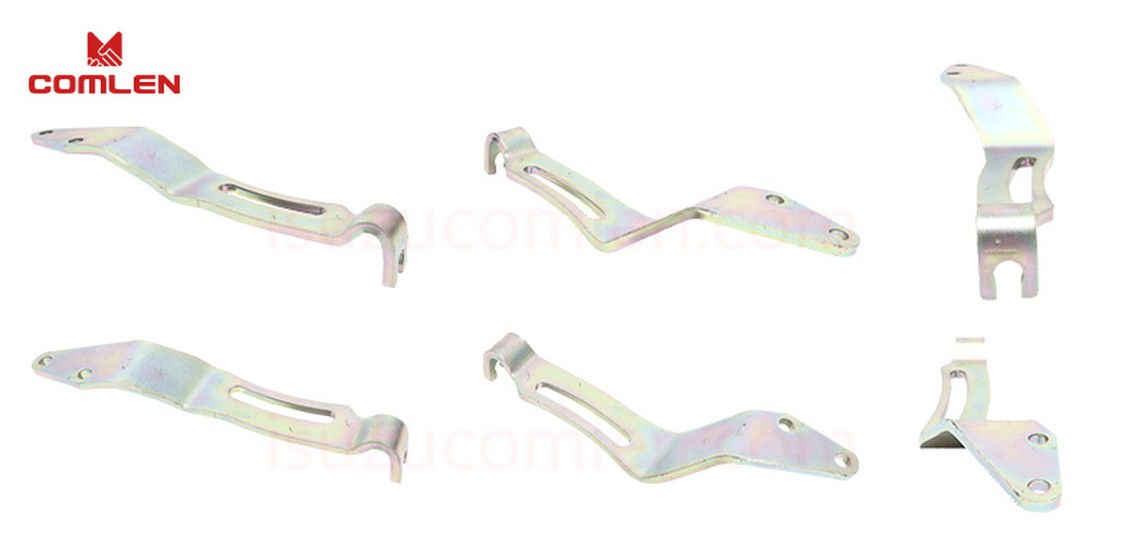

Related Products -- more Alternator Bracket For Isuzu trucks Image
Related Products -- Generator Assembly Image

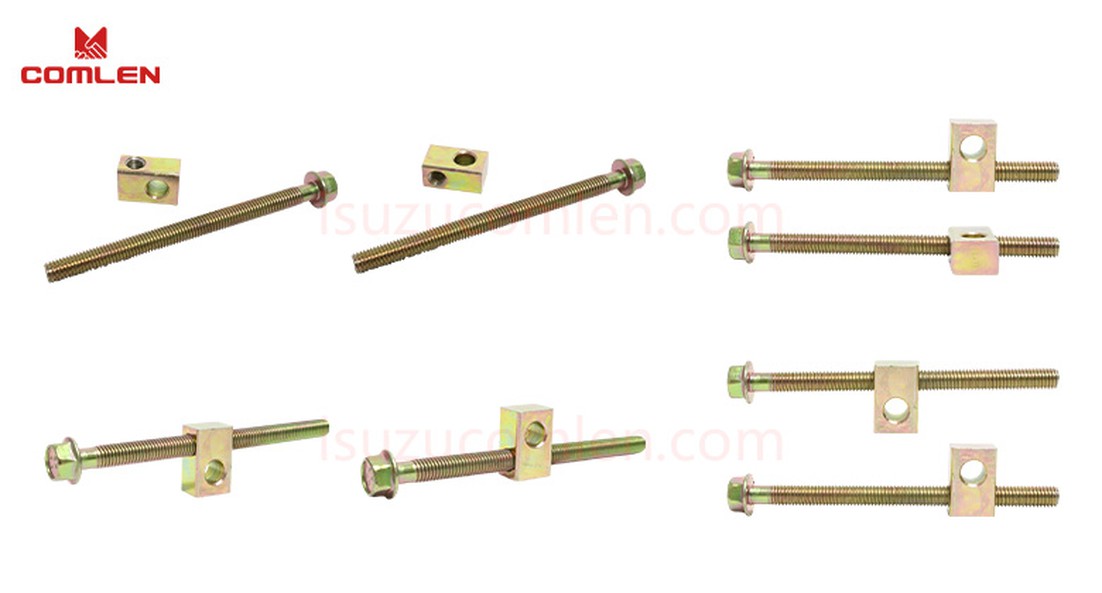

Related Products -- Alternator Adjustment Plate Screw Image
Related Products -- Crankshaft Pulley Image
One-stop Isuzu Truck Parts Supplier From China,
Isuzu Truck Alternator Adjusting Bracket Collection We Can Offer As Below.
China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality for Choose
| Product Name | Truck Fit For | Engine Fit For | OE NO. |
|---|---|---|---|
| Alternator Bracket (Adjusting) | NKR55/G5/TFR55G5/T+ | Alternator Bracket (Adjusting) |
8941356600, 8970805560, 8970805561, 8970805562, 8982417230 8-94135660-0, 8-97080556-0, 8-97080556-1, 8-97080556-2, 8-98241723-0 |
| Alternator Bracket (Adjusting) | 700P NPR | Alternator Bracket (Adjusting) |
8980350850,8980350851 8-98035085-0,8-98035085-1 |
| Alternator Bracket (Adjusting Plate) - Qingling | TF*/UC*55/T+ | Alternator Bracket (Adjusting Plate) - Qingling |
8971320490 8-97132049-0 |
| Alternator Bracket (Adjusting Plate) - Qingling | TF*/UC*17 | Alternator Bracket (Adjusting Plate) - Qingling |
8971346000 8-97134600-0 |
| Alternator Bracket (Upper) | 700P NPR Refrigerated Truck | Alternator Bracket (Upper) |
8980365500, 8980365501, 8982884360, 8982884361 8-98036550-0, 8-98036550-1, 8-98288436-0, 8-98288436-1 |
Alternator Adjusting Bracket and related products Introduction
Alternator Bracket (Adjusting)
The alternator bracket is a structural component designed to secure the alternator to the engine block or cylinder head. The adjusting version of this bracket features a slotted or pivoting mechanism that allows for precise positioning of the alternator to maintain correct belt tension.
Main Functions
- Structural Support and Alignment The bracket provides a rigid mounting point for the alternator, ensuring it remains perfectly aligned with the crankshaft pulley and other accessory drives to prevent belt slippage or premature wear.
- Belt Tension Regulation By utilizing an adjustment bolt or a sliding slot, the bracket allows technicians to physically move the alternator. This manual adjustment is crucial for applying the specific amount of tension to the drive belt required for efficient power transfer without overloading the alternator bearings.
- Vibration Resistance Engineered to withstand the constant high-frequency vibrations of the engine, the bracket prevents the alternator from loosening or shifting, which maintains the integrity of the electrical charging system and the accessory drive loop.
Generator Adjusting Bracket Damage
Damage to the generator adjusting bracket (or tensioning bracket) is a mechanical issue that should not be overlooked, as it directly affects the generator's mounting stability and belt tension. The main symptoms and potential consequences of bracket failure are as follows:
1. Strange Noises
Clunking or rattling: Loose or cracked bracket causes the generator to vibrate, making metal-on-metal sounds.
Squealing: Belt slips due to improper tension, producing a loud squeal.
2. Charging Problems
Weak or no charging: Loose belt slows generator speed, causing low or no power output.
Battery light on: Dashboard warning light appears due to voltage drop.
Flickering lights: Headlights or interior lights dim or flicker with engine speed.
3. Mechanical Damage
Belt wear or detachment: Misaligned generator causes uneven belt wear or the belt to come off.
Collateral damage: If bracket breaks, the generator can shift, damaging nearby parts or wiring. A broken bolt may also harm the engine block.
Generator Adjusting Bracket Location
The generator adjusting bracket (also known as the tensioning arm or adjusting arm) is typically located on the side of the engine, near the generator pulley.
1. Location
One end of the bracket is bolted to the engine block or cylinder head; the other end attaches to the generator mounting lug.
Usually positioned at the top or side of the generator, making it easy to access from above the engine bay.
The bracket sits on the same plane as the drive belt and adjusts belt tension by moving the generator.
2. Appearance
Adjustment slot: The bracket typically features a curved or straight slot. A bolt passes through this slot, allowing the generator to pivot and adjust belt tension.
Adjustment bolt: In some designs, a long threaded bolt is used to fine-tune the generator position.
Generator Bracket Installation
The procedure for installing the alternator adjustment bracket (tension arm) is relatively straightforward; however, the key lies in proper alignment and tension control. The following is the standard installation process:
1. Prepare
Disconnect the negative battery terminal.
Clean the mounting area on the engine.
2. Install Bracket Base
Position the bracket and hand-tighten the mounting bolt. Do not fully tighten.
3. Attach Generator
Align the generator with the bracket slot.
Insert the adjustment bolt loosely so the generator can move.
4. Install Belt and Adjust Tension
Place the belt over the pulleys.
Move the generator outward until the belt feels firm.
Press the belt at its longest span-it should deflect about 10–15 mm.
5. Tighten Bolts
Tighten the adjustment bolt first, then the bracket base bolts and generator pivot bolt.

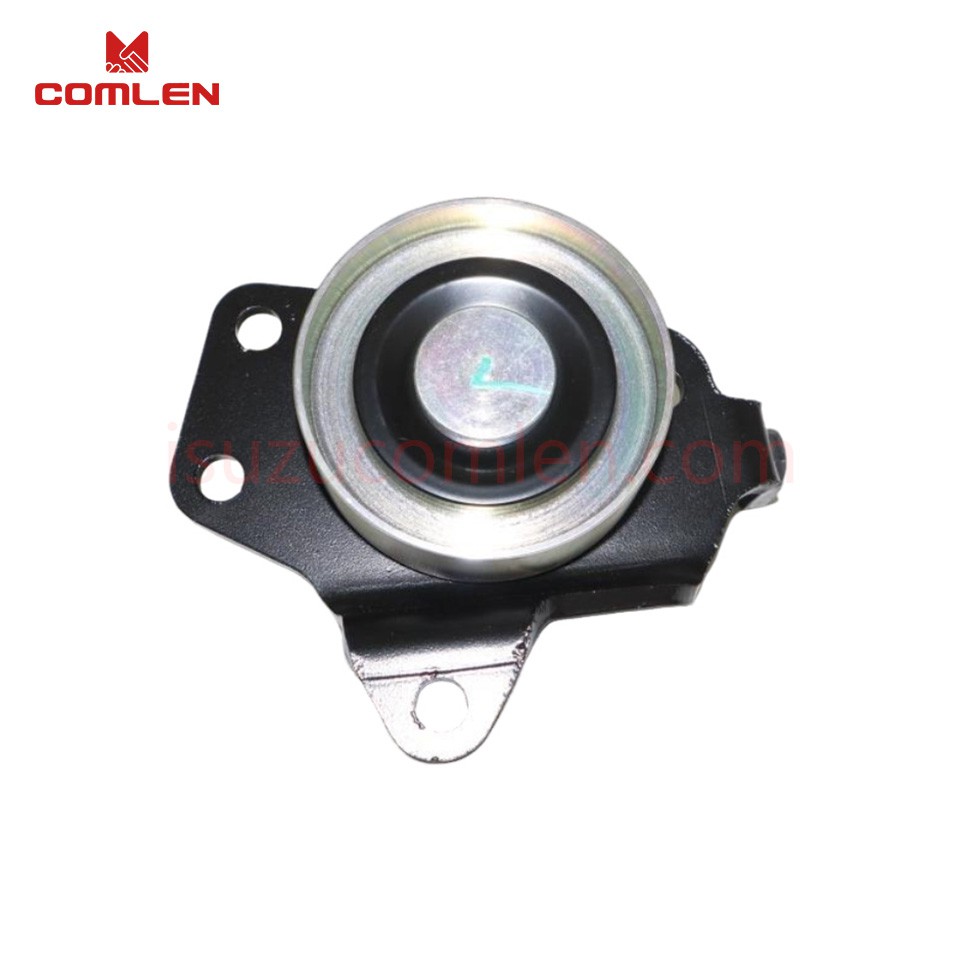

Related Products We Can Offer- Fan Pulley (Idler/Tensioner)
The Fan Pulley (also known as an Idler Pulley or Tensioner Pulley) is a critical component of the Front End Accessory Drive (FEAD) system. In many vehicle models-particularly commercial vehicles and trucks-it works in close coordination with the Alternator Bracket to maintain proper belt tension.
1. Core Functions of the Fan Pulley (Idler/Tensioner)
Guiding and Positioning: It directs the routing of the drive belt, ensuring an optimal wrap angle around the water pump, alternator, and crankshaft pulley.
Maintaining Tension: It prevents the belt from slipping, jumping teeth, or coming off during high-speed operation or sudden load changes.
Vibration and Noise Reduction: It absorbs vibrations during power transmission, extending the service life of the bearings and related accessories.
2. Adjustment Mechanism: Alternator Bracket (Adjusting)
In most conventional belt drive systems, the tension of the fan belt is maintained by adjusting the physical position of the alternator.

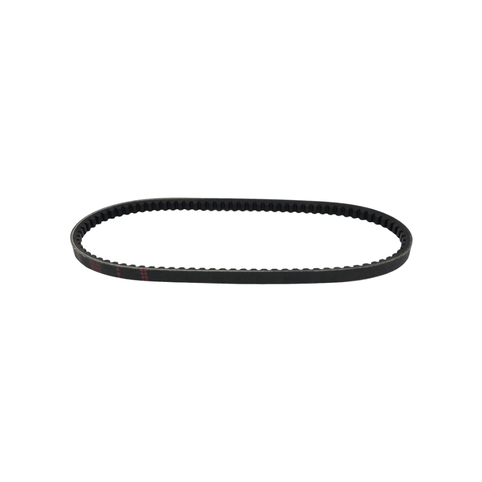

Related Products We Can Offer – Fan Belt
-
The Fan Belt is the transmission core of the Front End Accessory Drive (FEAD) system. Its tension directly impacts the engine's cooling efficiency and electrical power output.
1. Core Functions
Power Transmission: Transfers mechanical energy from the crankshaft to the cooling fan, water pump, and alternator.Cooling Support: Ensures the fan rotates at a sufficient speed to maintain the necessary airflow through the radiator.
2. Adjustment Mechanism: Alternator Bracket (Adjusting)
In manual tensioning systems, the fan belt tension is controlled by adjusting the alternator's position, with the bracket serving as the essential physical foundation:Positioning & Adjustment: The bracket secures the alternator and provides a sliding path. Using an adjustment slot or an Adjusting Bolt, the alternator's angle is shifted to precisely control belt tension.
For more For Isuzu Electrical System Parts we can offer
One-Stop Shop for Engine Accessory & Electronic Control Systems
View More to explore Engine System
View More to explore Chasis System
Reason Why Choose Us To Buy Alternator Bracket ?
1.Professional & Experienced
We have 29 years of experience in commercial vehicle engine parts, focusing on ISUZU, HINO and other heavy‑duty truck models. We know exactly what you need.
2.High-Quality Alternator Adjusting Bracket
Our Alternator Adjusting Brackets are manufactured from high-strength materials for exceptional durability, precise tension control, and reliable operation. Engineered for seamless integration with alternators and belt systems, they ensure optimal belt alignment and stable power output. All products strictly adhere to OEM standards.
3.Complete Range & One-Stop Supply
We provide all parts related to ISUZU Electrical System, Engine System Parts , Chasis System or other ISUZU truck system. You can get all you need in one order.
4.Stable Stock & Fast Delivery
Large inventory for hot models, ready to ship. We arrange delivery quickly to reduce your waiting time.
5.Secure Packaging
Strong wooden crate and professional packing to protect parts during long-distance transportation.
6.Professional Service
Professional sales team supports fast response, accurate matching and after-sales support.
7.Original quality can supply
China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality for Choose. You can choose what you like , quality is ensured.
8.Different price can supply
If you are a truck parts resaler ,distributor ,company ,we can offer big discount and samples .If you order many pieces in one order ,we also can give clients best price.
