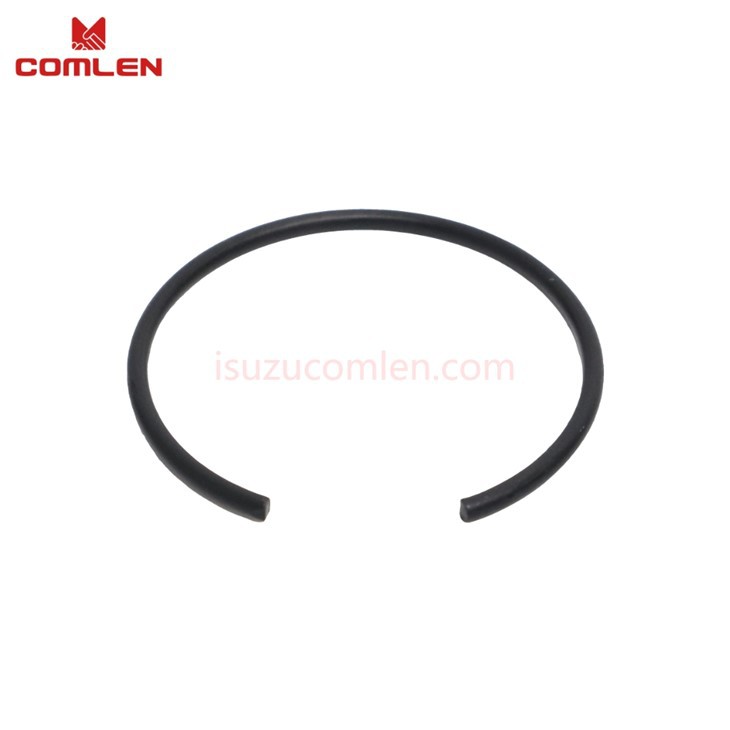

8941339680 Engine Piston Wrist Pin Retainer / Piston Pin Snap Ring (Turbo) For NKR TFR UBS Trucks With 4JB1T 4KH1 Engine

The Piston Wrist Pin Retainer (also known as piston pin snap ring, circlip, or wrist pin lock) is a small but absolutely critical engine component. These retaining rings secure the piston wrist pin (also called piston pin or gudgeon pin) within the piston, preventing the pin from sliding out and contacting the cylinder wall .

This wrist pin retainer is specifically designed for ISUZU 4JB1T (2.8L Turbo Diesel) and 4KH1 (3.0L Turbo Diesel) engines – found in NKR, TFR, and UBS series vehicles. OE cross reference: 8941339680, 8941339681, 8-94133968-0, 8-94133968-1The turbo engine specification indicates these retainers are manufactured to higher strength standards to withstand the increased cylinder pressures and thermal loads of turbocharged operation .Choose from 3 quality levels – China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality.

Step	Procedure
1	Clean piston wrist pin bore and retaining ring grooves thoroughly
2	Apply a small amount of engine oil to the wrist pin and retainer area
3	Insert wrist pin through piston and connecting rod (properly aligned)
4	Use snap ring pliers to compress the retainer – do not use screwdrivers
5	Insert one side of retainer into the groove first
6	Work the retainer around the circumference until fully seated in groove
7	Verify the retainer is fully seated – no gaps or protrusions
8	Rotate the retainer slightly to confirm it moves freely in the groove (but not loose)
9	Repeat for the opposite side of the wrist pin
10	Double-check both retainers before proceeding to next piston

Part	Purpose	Recommendation
Piston Rings	Seal combustion – control oil consumption	Replace with retainers
Main Bearings	Crankshaft support	Replace during rebuild
Rod Bearings	Connecting rod to crankshaft	Replace during rebuild
Full Gasket Set	Complete engine sealing	Essential for rebuild
Timing Belt / Chain	Valve timing	Replace during rebuild
Oil Pump	Engine lubrication	Inspect – replace if worn

Q1: What does "Turbo" specification mean for these retainers?

A: Turbocharged diesel engines (4JB1T, 4KH1) operate at significantly higher cylinder pressures and temperatures than naturally aspirated engines. Turbo-spec retainers are manufactured from higher-grade spring steel with enhanced heat treatment to withstand these increased stresses without losing retention force.

Q2: What is the difference between OE numbers 8941339680 and 8941339681?

A: These may represent:

Left and right side retainers (if asymmetrical)

Different production runs (supersession)

Early vs. late production specifications

Both numbers are for turbo engine wrist pin retainers. Our retainers are compatible with both OE numbers.

Q3: How many retainers do I need for a complete engine rebuild?

A: For a 4-cylinder engine (4JB1T or 4KH1):

2 retainers per piston (one on each side of the wrist pin)

4 pistons × 2 retainers = 8 retainers total

Our standard set includes all 8 retainers needed for a complete engine rebuild.

Q4: Can I reuse the old wrist pin retainers from my engine?

A: Absolutely not. Wrist pin retainers (snap rings) are single-use components . Removing them permanently deforms the spring tension. Reused retainers can fail catastrophically, destroying your engine. The cost of new retainers is trivial compared to engine replacement.

Q5: Will these fit my naturally aspirated (non-turbo) 4JB1 engine?

A: Please verify before ordering. Naturally aspirated 4JB1 engines may use a different wrist pin retainer. These retainers are specifically designed for turbocharged 4JB1T and 4KH1 engines. Send us your original part number or engine details for verification.

Q6: Is this set compatible with aftermarket pistons?

A: Most aftermarket pistons for 4JB1T/4KH1 engines are designed to accept OEM-spec retainers. However, we recommend:

Comparing your new piston's retainer groove dimensions to OEM specifications

Test-fitting one retainer before assembling all pistons

Q7: What happens if a wrist pin retainer fails?

A: A failed retainer allows the wrist pin to slide sideways out of the piston. The exposed wrist pin contacts the cylinder wall, causing:

Severe cylinder wall scoring (requires boring or replacement)

Piston fracture or destruction

Connecting rod damage

Complete engine failure requiring full rebuild or replacement

Q8: Do you offer wholesale pricing for engine rebuild shops?

A: Yes. Please contact us with your quantity and preferred quality level for competitive shop pricing. Bulk discounts available for engine rebuilders and fleets.

Q9: What is your warranty policy?

A: This product comes with a 1-year warranty against manufacturing defects. Please contact our support team for any issues.
