1. What Is the MYY5T transmission assembly?
The MYY5T is a 5-speed + 1 reverse manual transmission from Isuzu's MYY family. It uses a full synchromesh design, with synchronizer rings on 1st through 5th gears. Fifth gear is an overdrive, with a ratio of 0.721.
Its rated input torque is roughly 225–250 Nm. It's matched primarily to Isuzu's 4HF1, 4HG1, 4HE1, and 4JH1 series of mid-low-power diesel engines, covering roughly 100–150 hp. The case is aluminum alloy, and the unit weighs about 115 kg-on the lighter side for its class.
In one sentence: the MYY5T is a mass-produced manual gearbox built for light-to-medium commercial vehicles, with reliability and serviceability as its top priorities.

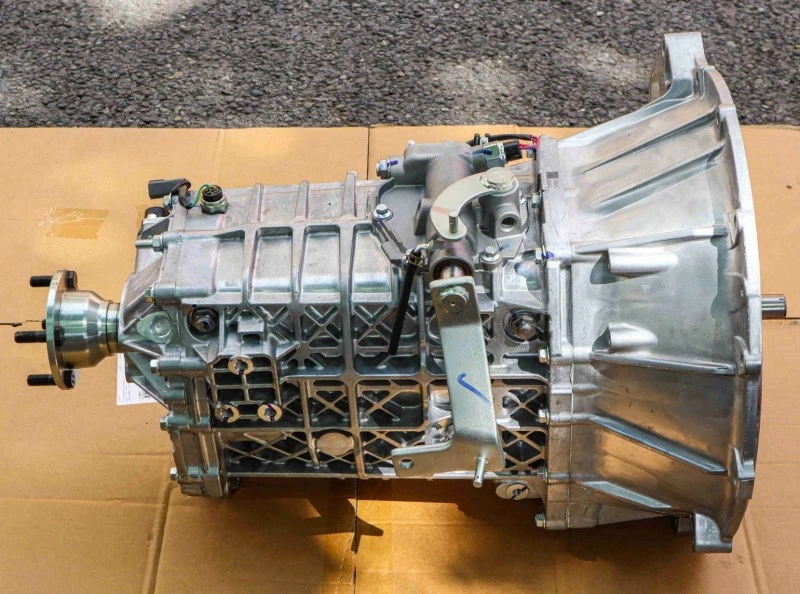

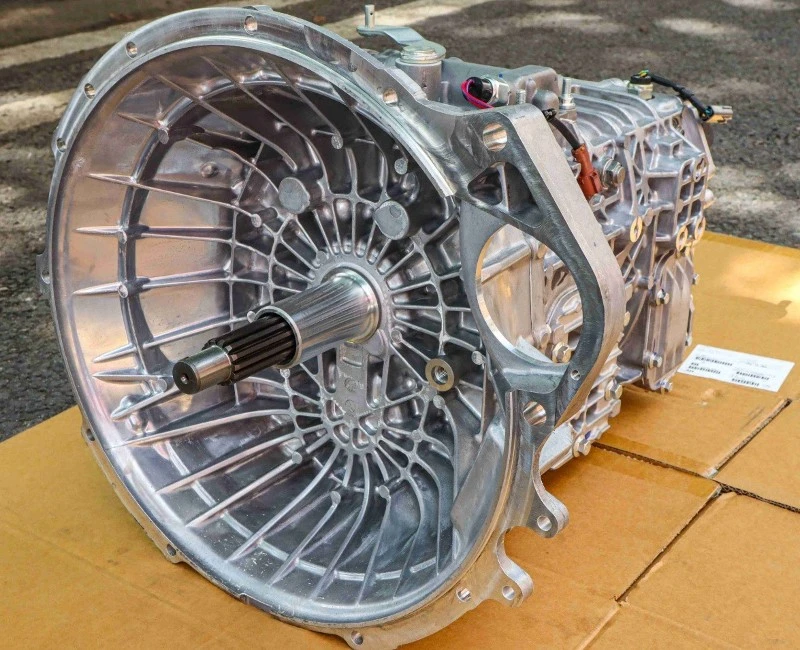

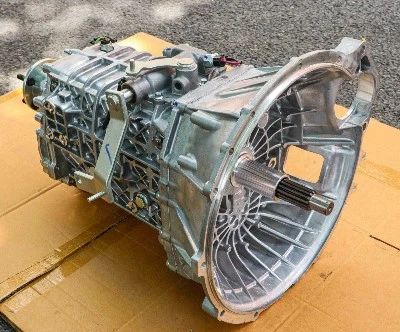

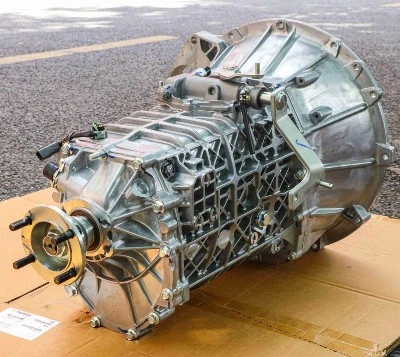

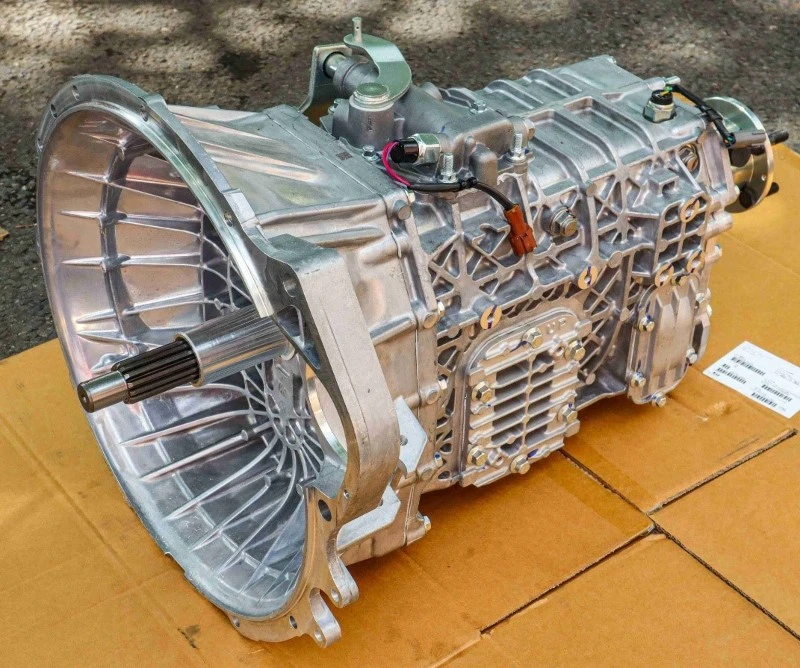

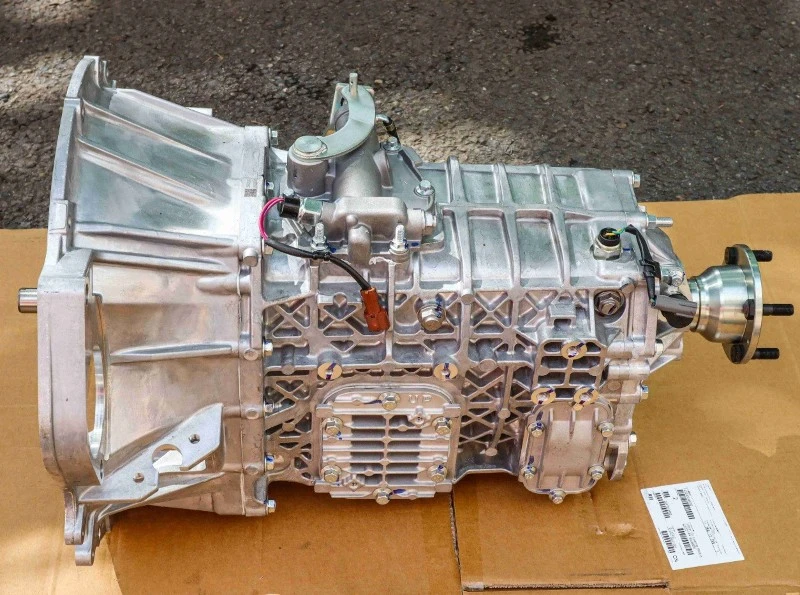

MYY5T transmission assembly real shooting pictures:
2. Gear Ratios and Driving Character
The gear spread is the key to understanding how the MYY5T feels on the road. Using official data from the NPS71 4×4 model:
1st: 5.315
2nd: 3.053
3rd: 1.655
4th: 1.000 (direct drive)
5th: 0.721 (overdrive)
Reverse: 5.068
A 5.315 first gear is on the deep side for a light truck, giving plenty of torque multiplication for standing starts and heavy loads. Fourth is direct drive-the most efficient gear, ideal for moderate-speed cruising. Fifth at 0.721 drops highway rpm, which helps fuel economy directly.
When paired with an Isuzu 4HG1 or 4JJ1 engine, the overall feel is "adequate and economical." It's not a gearbox that prioritizes shift feel, but the ratio logic is clear: strong starts, economical cruising, and evenly spaced middle gears so you don't need to skip gears in daily driving.
MYY5T transmission assembly real shooting video:
3. Applications: More Than Just Isuzu N-Series
The MYY5T is best known for its use in Isuzu N-Series trucks, covering sub-models like NKR, NPR, NQR, NLR, and NMR. On official product pages, the MYY-5T is described as "suitable for light and medium trucks."
But its reach is wider than many people realize:
Isuzu side: NPR, NQR, NKR series, plus the NPS71 4×4 off-road chassis. In Australia, the NLR 200 also came with the MYY-5T, with a PTO opening on the left side of the case and PTO drive taken from the countershaft gear.
Hino side: The Hino 300 Series (165, 185, 238, 268A, 338) and models like the FA1415, 195DC, and 258LP have all used the MYY5T. That means at the parts level, there's significant interchangeability between Isuzu and Hino MYY5T components-something repair shops should cross-reference by OEM number.
This cross-brand fitment is a big reason the MYY5T aftermarket is so active. When one transmission model serves the main product lines of two Japanese light-truck brands, parts suppliers achieve scale-and that benefits everyone.
4. Common Repair Scenarios
The MYY5T is not a complicated unit, but after enough miles, a few issues tend to show up:
Shift cable wear or breakage. The MYY5T uses a cable-operated shift mechanism. Cable lengths vary by model (common specs include 3010mm, 3006mm, 3080mm, and 3120mm). OEM part number 8981468480 corresponds to one common shift cable. When a cable ages, you get vague gates, difficulty engaging gears, or even the inability to shift at all.
Synchronizer ring wear. The 2nd/3rd and 4th/5th synchronizer rings are the most commonly replaced items. The 4th/5th synchronizer assembly (hub and sleeve) carries OEM number 8973665260 and fits MYY5T/MYY6S. The 2nd/3rd inner ring is 8972413121. Typical symptoms are grinding when shifting, especially into 2nd and 3rd when cold.
Input shaft spline wear. The input shaft splines mate with the clutch disc. Over time, they can wear. Key specs for the MYY5T input shaft are Z=28, 14-spline, OEM number 8972529241.
Shift mechanism binding. The shift mechanism (selector lever/ball joint) is OEM 8982409992. After long service, worn ball joints and bushings make gear selection vague. Replacing it noticeably improves feel.
5. Parts Buying and Complete Transmission Options
The MYY5T parts ecosystem is one of the more mature ones among manual transmissions. From input shaft, main shaft, and countershaft to synchronizers, shift forks, cables, seals, and clutch slave cylinders, almost every component has its own OEM number. You'll find genuine OEM parts as well as aftermarket options from Taiwan, Turkey, and elsewhere, with clear price tiers.
If you need a complete transmission assembly, current channels include OEM, used/salvage, and remanufactured or aftermarket units from China. MYY5T assemblies are readily available on B2B platforms like Alibaba.com, fitting Isuzu NHR/NKR/NPR/NQR/NRR and other models, with Hino-compatible versions also offered by some suppliers.
A few things to watch when buying:
Confirm year and engine model. Even though the model name is the same, clutch housing, input shaft splines, and PTO interface locations can differ by year and engine. Giving the supplier your VIN is the safest approach.
Know the difference between OEM and aftermarket quality levels. For critical drivetrain parts like input shafts and synchronizers, OEM and aftermarket differ noticeably in materials and heat treatment. Aftermarket may cost one-third to one-half of OEM, but the lifespan gap under heavy use is just as clear.
For cables, confirm length first. MYY5T shift cables come in multiple lengths, and the same model in different years can vary. Buying the wrong length means it won't fit.
6. Why the MYY5T Still Matters
With electrification and automatics slowly making inroads into the light-truck market, a 5-speed manual sounds like a relic. But the MYY5T remains active in a huge number of vehicles on the road for a simple reason: simple design, abundant parts, and controllable repair costs.
For a city delivery truck doing 200 km a day, when the transmission acts up, the owner doesn't care how many gears it has or how it shifts. They care about three things: Can it be fixed tomorrow? How much do parts cost? Can I find someone to do the job? The MYY5T answers all three with a yes.
If you're looking for an MYY5T transmission or parts for your Isuzu N-Series or Hino 300 Series, start by confirming your model year and engine, then cross-reference OEM numbers. For critical parts, go OEM or with a proven aftermarket brand. For cables, seals, and other non-critical items, you can be more flexible based on budget.
