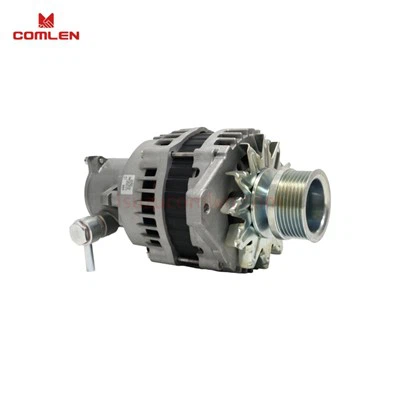

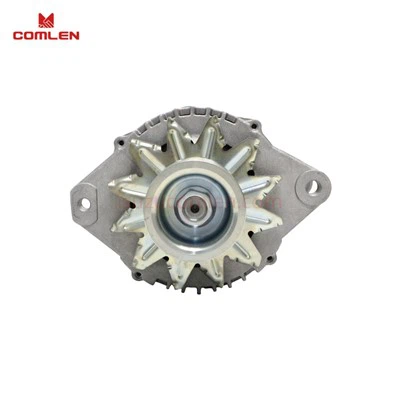

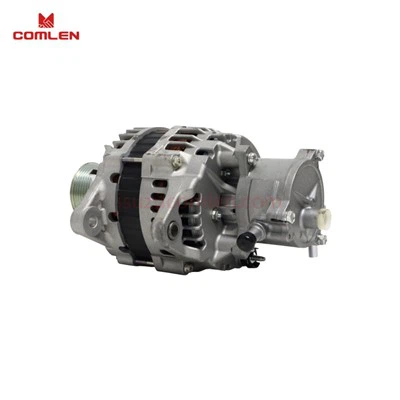

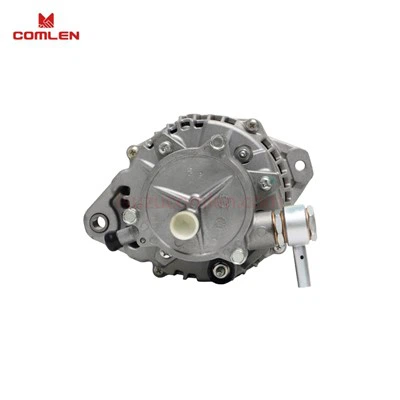

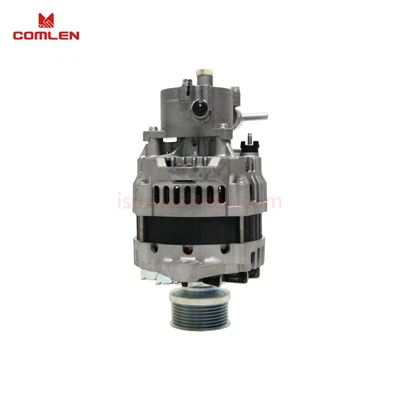

Isuzu NPR 700P 24V 60A Alternator / Generator Assembly For 4HK1 Engine 8981808740 8981950520 8981808750 8-98180874-0 8-98195052-0 8-98180875-0 video

Isuzu NPR 700P 24V 60A Alternator / Generator Assembly For 4HK1 Engine 8981808740 8981950520 8981808750 8-98180874-0 8-98195052-0 8-98180875-0

Part No.: 8981808740 8981950520 8981808750 8-98180874-0 8-98195052-0 8-98180875-0 Car model: NPR, 700P Engine model: 4HK1-TCG5 Weight: 8.7kg Quality we can offer :China ISUZU (Qingling) Quality / Famous Brand Aftermarket Quality / Japanese ISUZU Quality for Choose

Description

Workshop Fitment Notes: 24V Alternator for Isuzu Forward 700P & NPR (4HK1-TCG5)

Over the past few seasons handling fleet teardowns across Chongqing and overseas export yards, the most frequent electrical failure on 4HK1-powered NPR and 700P delivery rigs has been front bearing seizure on high-output alternators. Between running heavy auxiliary tail-lifts, cab air blowers, and common-rail injection computers all day, the factory generator takes heavy mechanical side-load from the serpentine belt. If you are swapping out part numbers 8981808740, 8981950520, or 8981808750, here are the real-world bench specs and installation checks we follow before boxing and dispatch.

Bench Measurements & Physical Specifications
Checked Item
Workshop Bench Record
Application Focus
Commercial vehicle charging generator with integral solid-state regulator
Primary OE Numbers
8981808740 / 8981950520 / 8981808750 (8-98180874-0, 8-98195052-0)
Applicable Chassis
Isuzu Forward 700P, NPR, NQR light-to-medium trucks
Engine Matching
4HK1-TCG5 and 4HK1-TCS turbocharged high-pressure common rail diesels
Rated System Voltage
24V heavy-duty standard; internal regulator holds output near 28.2V under load
Pulley Profile
Machined multi-v serpentine drive pulley aligned to factory auxiliary belt spacing
Available Quality Tiers
Qingling factory standard units, Japan genuine packaging, or heavy commercial aftermarket
Supply & Packaging
Sample dispatches available from 1 piece; foam-cushioned export box; 12-month quality support

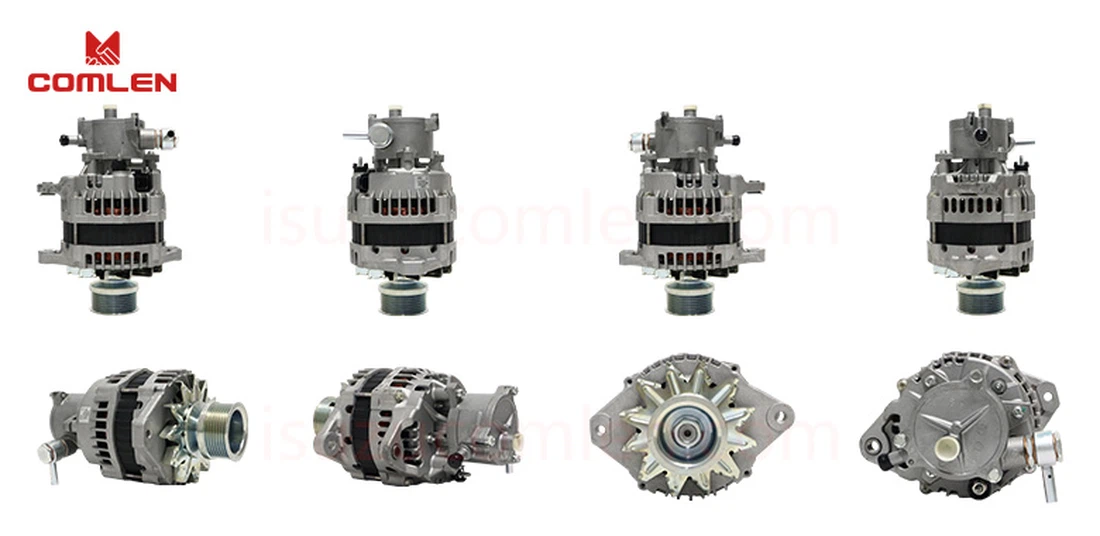

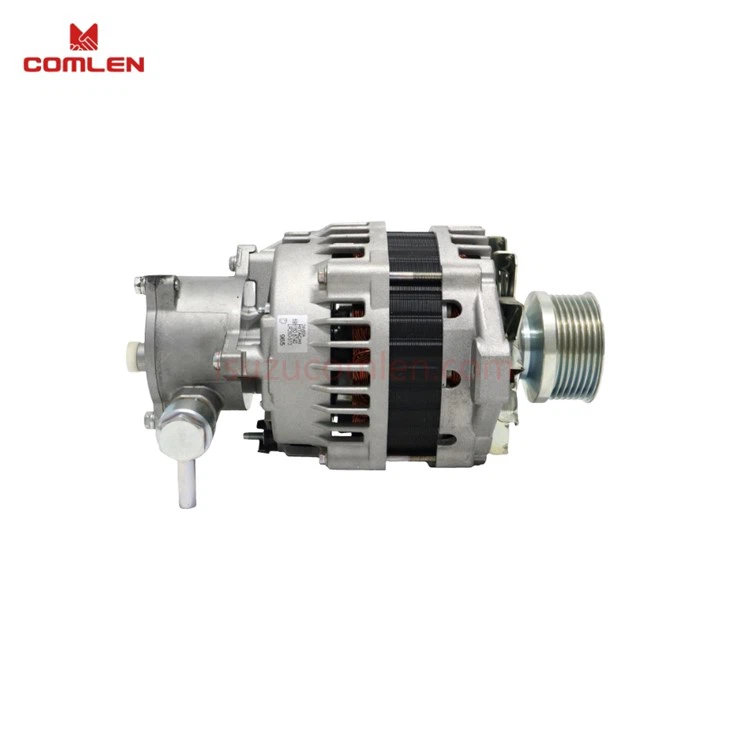

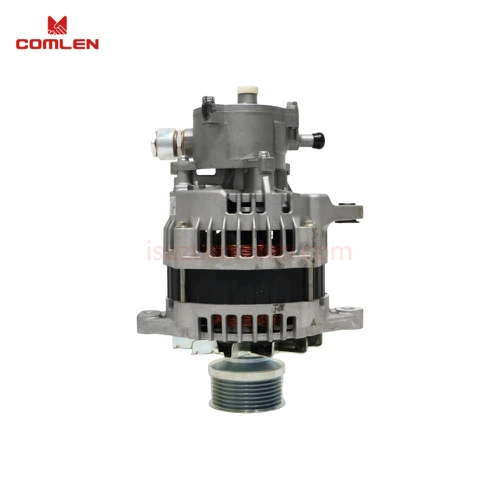

Isuzu 4HK1 alternator generator assembly 8981808740

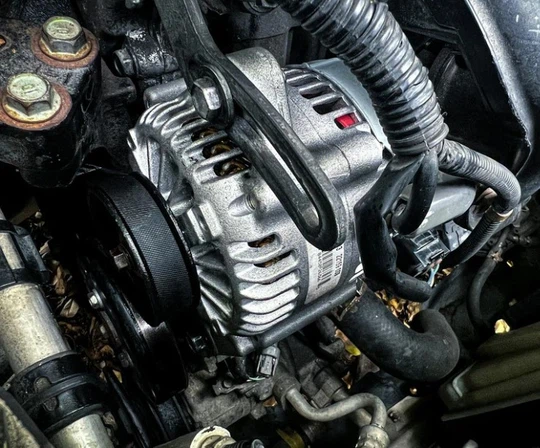

Real-World Fitting Experience on 4HK1 Blocks

One detail mechanics often overlook when dropping in a new alternator is the cast mounting foot on the lower engine bracket. On trucks running corrugated gravel detours, road grit builds up between the steel bracket ears and the alternator body. If you tighten down the pivot bolt without scraping that debris away, the pulley sits roughly 1 to 2 millimeters out of true plane, shredding the outer rib off the serpentine belt within the first five thousand kilometers.

During test-bench rotation, our technicians check both cold and hot voltage output across varying rotor speeds. The built-in diode bridge needs to hold a clean direct-current waveform without harmonic AC ripple; otherwise, sensitive sensor circuits on common rail 4HK1 engines can trigger erratic cam and crank position timing errors.

We always recommend inspecting the upper adjusting bracket and belt tensioner bolt during the job. If the tensioner thread is partially stripped from previous overtightening, vibration will gradually back off belt pressure, causing the generator to slip under full headlight and heater blower draw.

Front Drive Accessories for Complete Rebuilds

To save labor time and avoid repeated teardowns, most workshops source their tensioner hardware, guide pulleys, and drive belts in the same crate as the alternator.

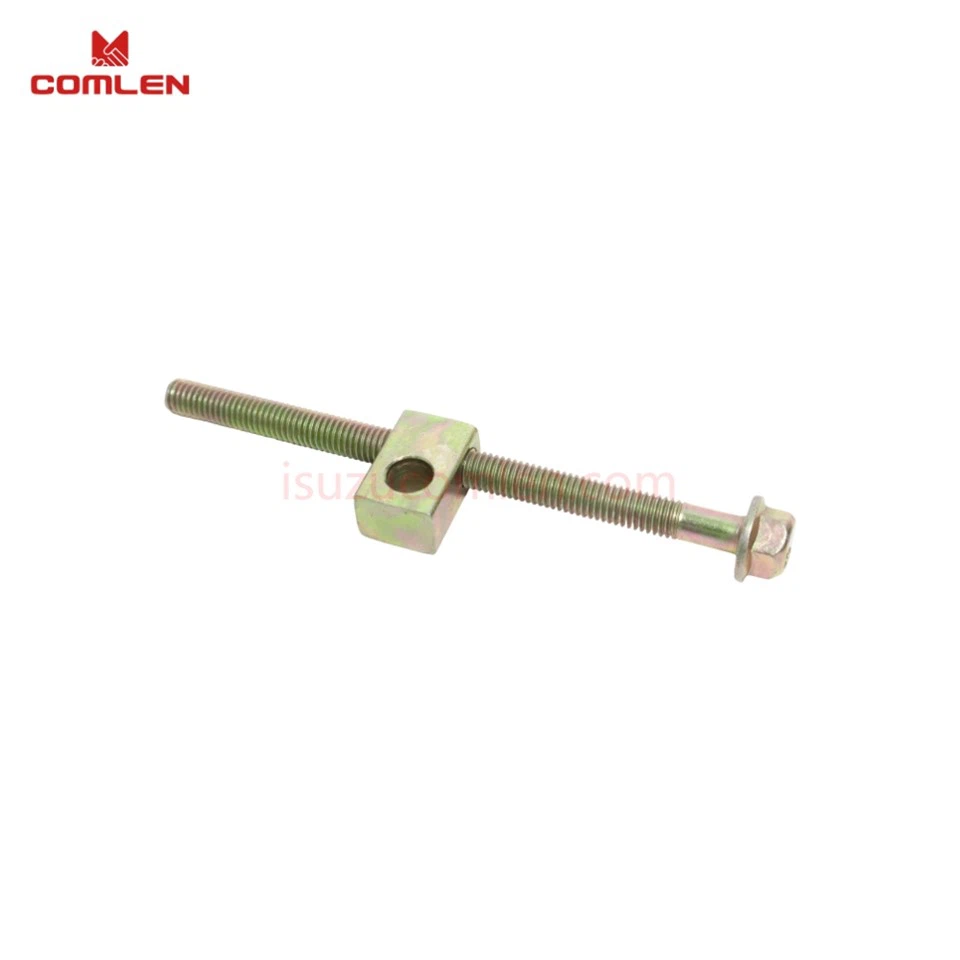

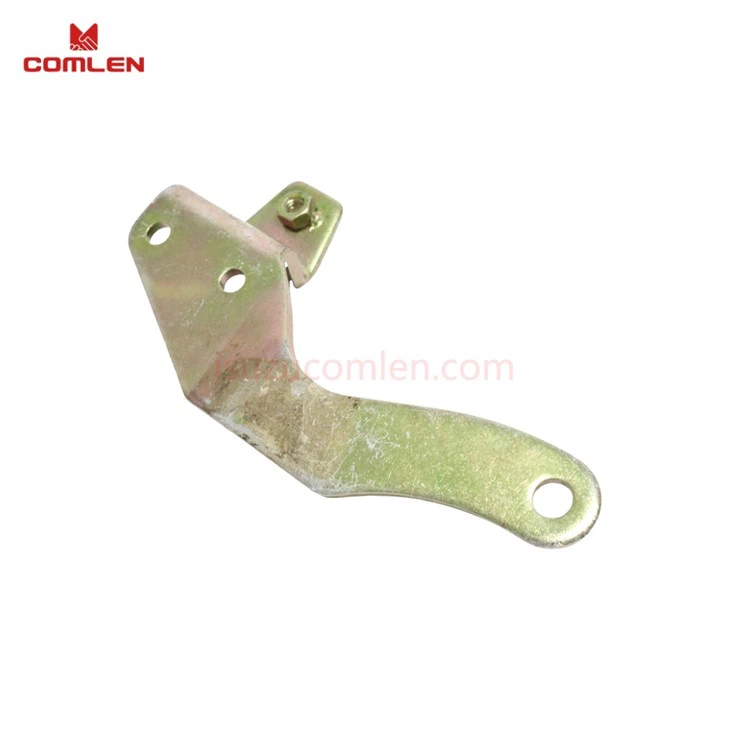

4HK1 alternator adjusting tensioner bolt 4HK1 upper alternator mounting bracketBelt tensioner adjusting bracket

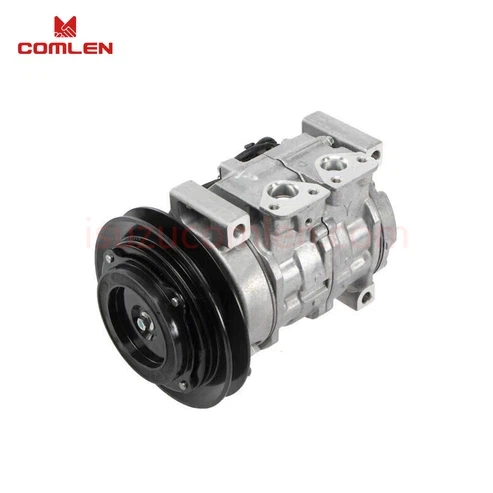

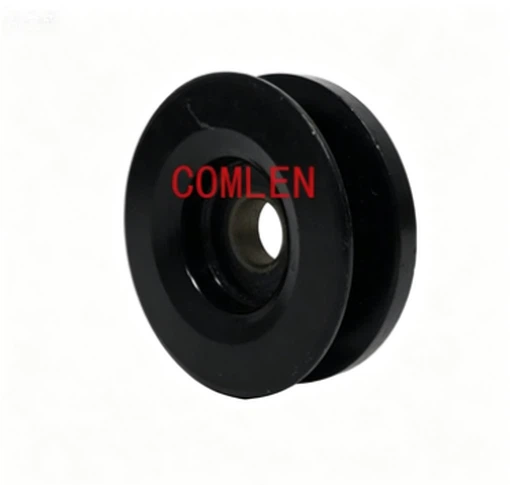

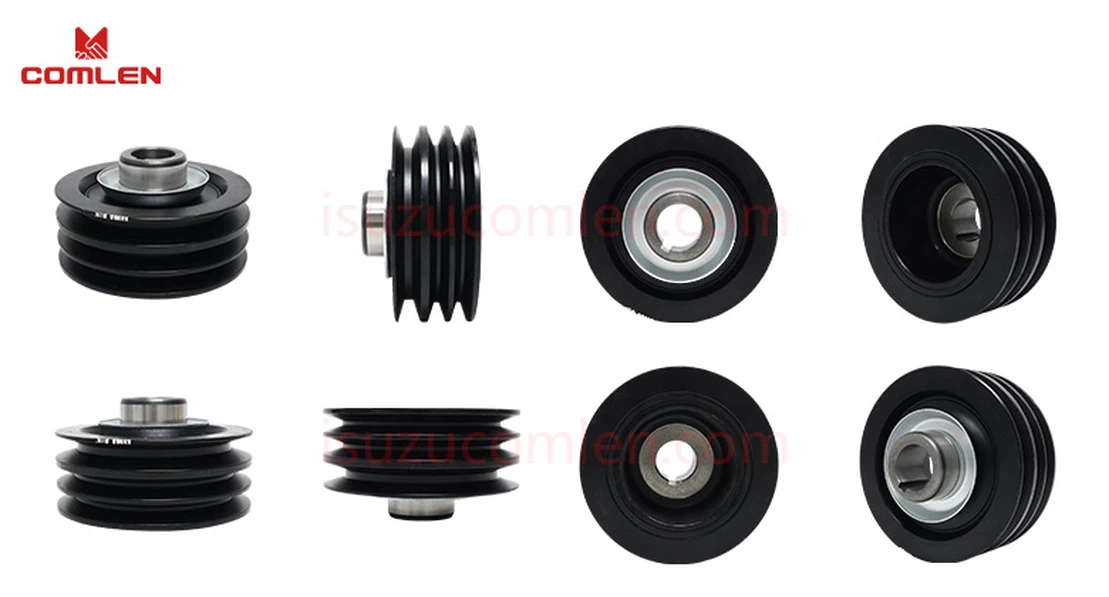

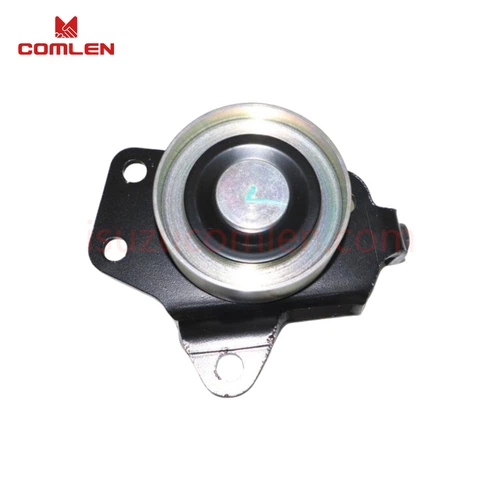

Alternator multi-rib drive belt Commercial truck A/C compressor unit Engine belt idler guide pulley
Depot Storage & Export Staging
Commercial vehicle components showroom
Engine electrical and chassis components warehouse
Global export logistics staging center
Certified brand manufacturer supply lines
Checking Part Fitment

Because 4HK1 commercial chassis feature several belt track variations depending on the vehicle production year and AC compressor setup, feel free to send us your truck chassis VIN plate or the part stamp off your old alternator.

Our export desk can check the electronic parts catalog directly to verify pulley offsets and terminal plugs before anything gets packed.
