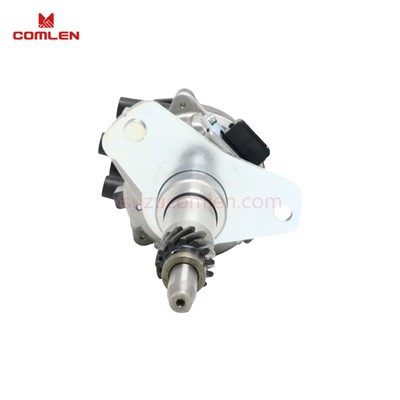

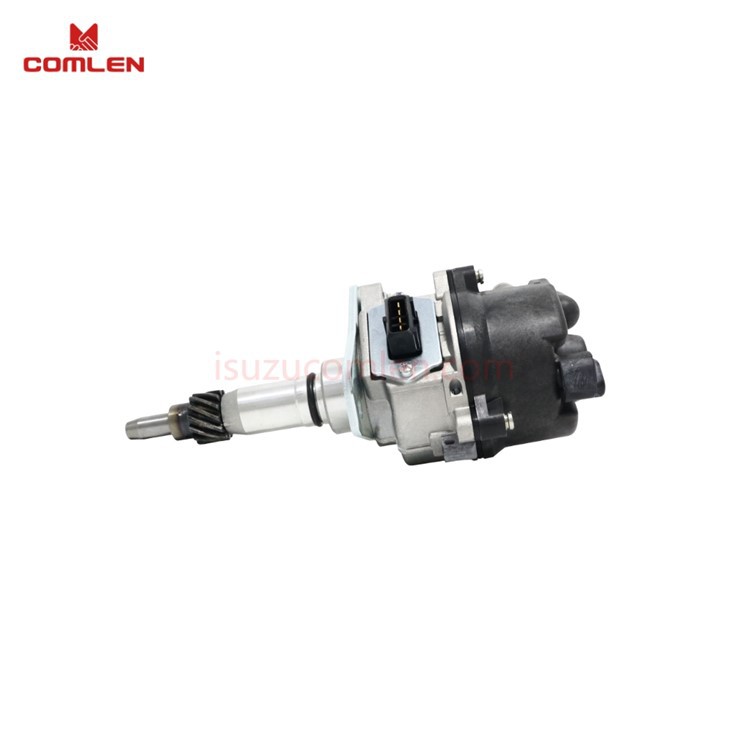

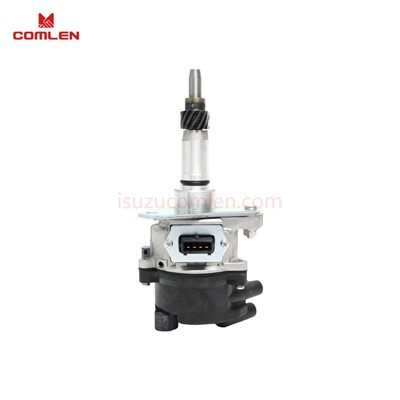

Setting base timing on the 4ZE1 engine requires exact alignment between the cylinder head punch mark and the distributor drive gear dimple before dropping the shaft into the housing. If the drive helical gear is off by even one tooth, the timing adjustment slot won't provide enough travel to reach the factory 12° BTDC idle mark, leaving the engine prone to hesitation under load.

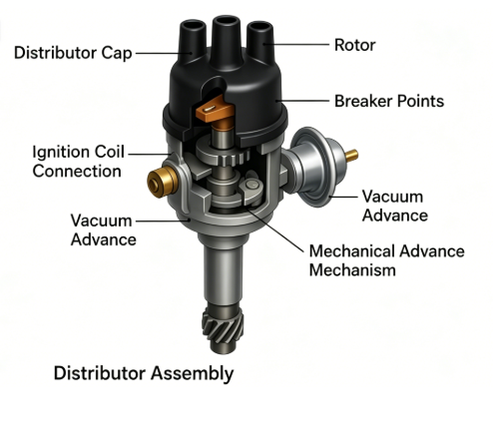

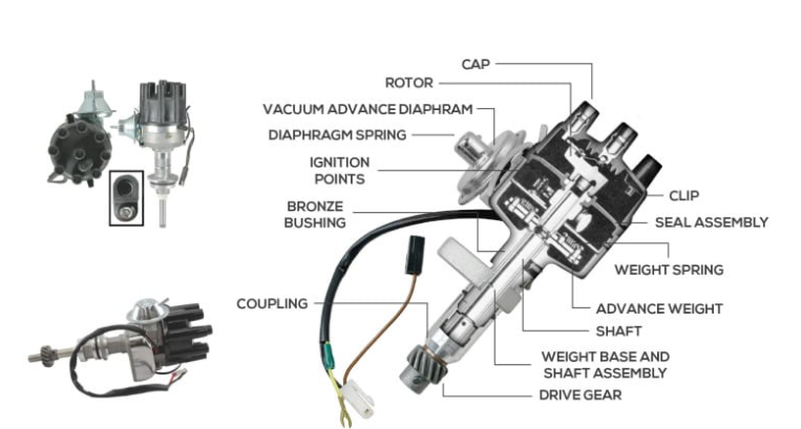

The vacuum canister plays a critical role during part-throttle cruising. As manifold vacuum pulls the internal breaker plate, it advances spark timing smoothly to burn lean fuel mixtures efficiently. Our assemblies feature high-temperature rubber diaphragms tested to hold vacuum without leaking, preventing erratic RPM hunting and exhaust manifold overheating.

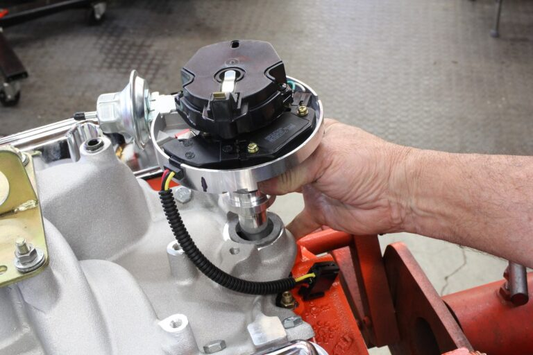

Before locking down the distributor hold-down bolt, always apply a light smear of clean engine oil over the O-ring seal to prevent tearing during installation. Check that the rotor arm spins freely without binding against the cap posts to eliminate premature contact wear.
